M5Stack-Cardputer base shield
Overview

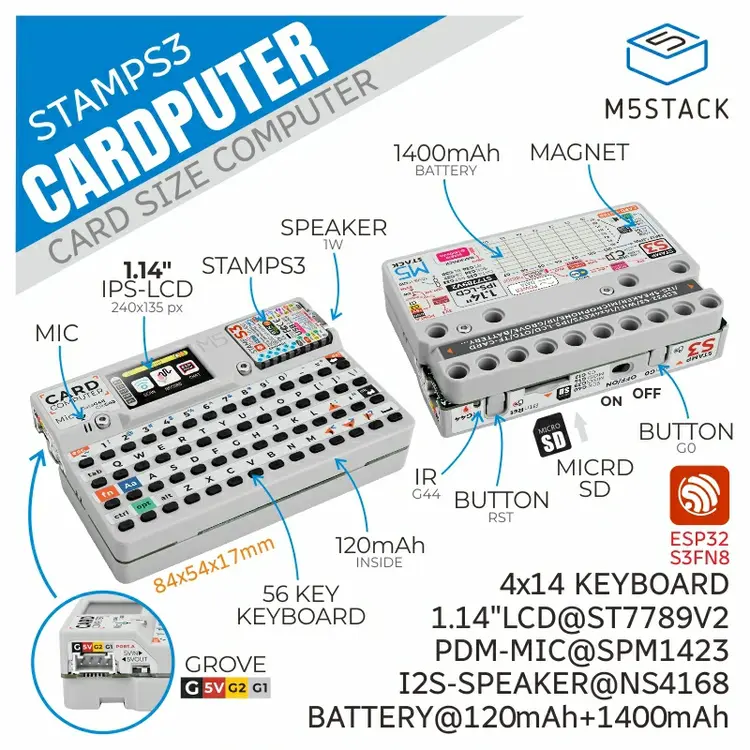

M5Stack-Cardputer [1] is a card-sized portable computer that is perfect for engineers. At the heart of Cardputer is the M5StampS3, a mini development board based on the ESP32-S3 chip.
The 56-key keyboard and 1.14” TFT screen allow users to easily enter and view information. The on-board SPM1423 digital MEMS microphone and built-in speaker enable voice operations such as recording, wake-up and audio playback. The infrared emitter allows infrared control interaction with external devices such as TVs or air conditioners. And Cardputer offers a HY2.0-4P interface for expanding I2C sensors such as temperature and humidity sensors, light sensors and pressure sensors. It also includes a Micro SD card slot for expanding storage.
The device is powered by an internal 120mAh+1400mAh (in the base) lithium battery solution.
M5Stack-Cardputer
Note
The NS4186 I2S Codec, SPM1423 microphone, IR LED and Keyboard functionality is not implemented yet.
Pins Assignments
ESP32-S3 GPIO Pin |
Function |
|
|---|---|---|
0 |
User Button |
|
1 |
I2C SCL |
|
2 |
I2C SDA |
|
10 |
VBAT Voltage |
|
33 |
LCD RST |
|
34 |
LCD RS/DC |
|
35 |
LCD MOSI |
|
36 |
LCD SCLK |
|
37 |
LCD CS |
|
38 |
LCD Backlight |
|
39 |
uSD MISO |
|
40 |
uSD SCLK |
|
12 |
uSD CS |
|
14 |
uSD MOSI |
|
Programming
Set --shield m5stack_cardputer when you invoke west build.
For example:
# From the root of the zephyr repository
west build -b m5stack_stamps3/esp32s3/procpu --shield m5stack_cardputer samples/drivers/display
