RZ/A2M Evaluation Kit
Overview
The RZ/A2M Evaluation Board Kit is a best evaluation board kit to evaluate RZ/A2M.
On-board device: RZ/A2M (R7S921053VCBG: with DRP function, without encryption function, internal RAM 4MB) Evaluation of DRP (Dynamically Reconfigurable Processor) is possible.
MIPI Camera Module (MIPI CSI) is bundled and image recognition processing etc. can be used with images input with MIPI camera.
HyperMCP (Multi-chip package), in which HyperFlash and HyperRAM are installed in one package, is mounted. HyperFlash and HyperRAM can be evaluated.
A Display Output Board is included and the graphic output is possible by connecting it to the external display.
It is possible to evaluate 2ch Ethernet communication.
Other peripheral functions such as SDHI and USB can also be evaluated.
Allows for safe and secure connection to the AWS cloud. HyperFlash and HyperRAM are trademarks of Cypress Semiconductor Corporation of the U.S.
Hardware
The Renesas RZ/A2M MPU documentation can be found at RZ/A2M Group Website [1]

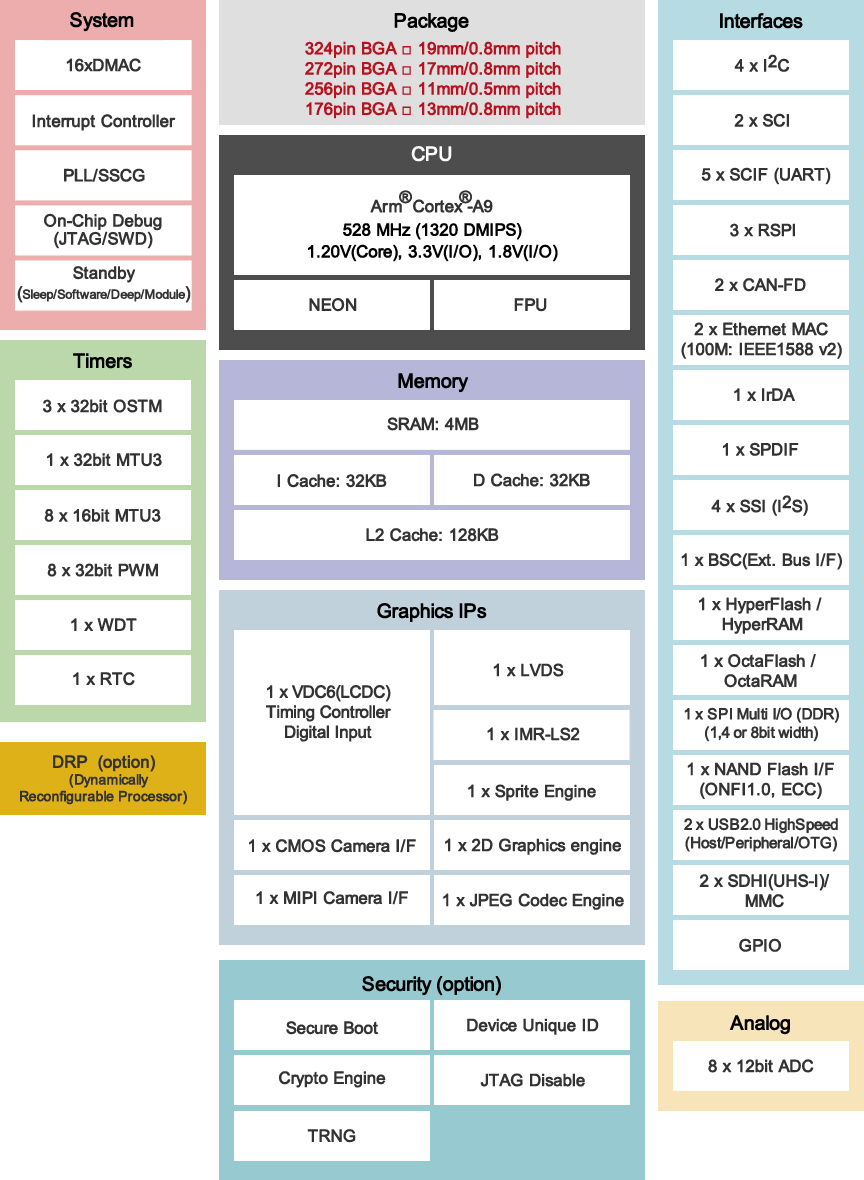

RZ/A2M block diagram (Credit: Renesas Electronics Corporation)
Detailed hardware features for the board can be found at RZ/A2M-EVK Website [2]
Supported Features
The rza2m_evk board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
Type |
Location |
Description |
Compatible |
|---|---|---|---|
Clock control |
on-chip |
RZ/A2M Clock Pulse Generator1 |
|
on-chip |
Generic fixed-rate clock provider4 |
||
GPIO & Headers |
on-chip |
Renesas RZ/A2M GPIO Interrupt1 |
|
on-chip |
Renesas RZ/A2M GPIO Controller22 |
||
Interrupt controller |
on-chip |
ARM Generic Interrupt Controller v21 |
|
LED |
on-board |
Group of GPIO-controlled LEDs1 |
|
MTD |
on-board |
Fixed partitions of a flash (or other non-volatile storage) memory1 |
|
Pin control |
on-chip |
Renesas RZ/A2M pin controller1 |
|
Serial controller |
on-chip |
||
SRAM |
on-chip |
Generic on-chip SRAM2 |
|
Timer |
on-chip |
Programming and Debugging
The rza2m_evk board supports the runners and associated west commands listed below.
| flash | debug | rtt | debugserver | attach | |
|---|---|---|---|---|---|
| jlink | ✅ (default) | ✅ (default) | ✅ | ✅ | ✅ |
Applications for the rza2m_evk board configuration can be
built and flashed in the usual way (see Building an Application
and Run an Application for more details).
Console
The UART port is accessed by USB-Serial port (CN5).
Building & Flashing
Here is an example for building and flashing the Hello World application.
# From the root of the zephyr repository
west build -b rza2m_evk samples/hello_world
west flash
