MAX32690FTHR
Overview

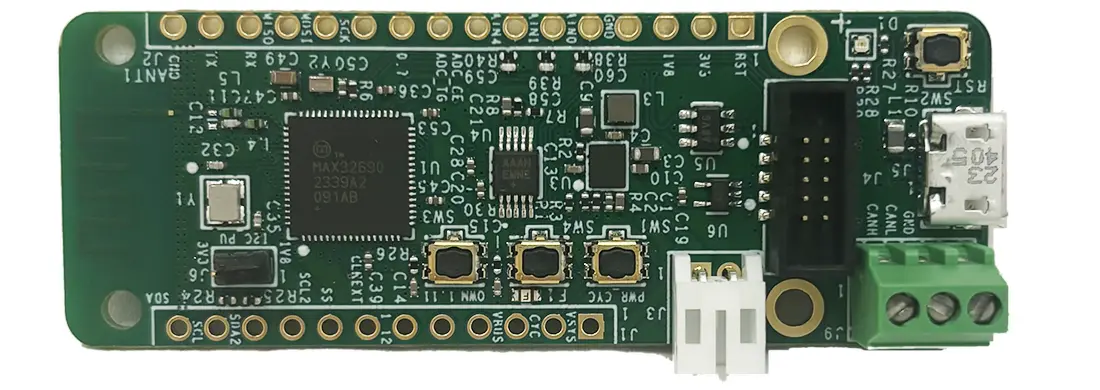

The MAX32690FTHR is a rapid development platform to help engineers quickly implement ultra low-power wireless solutions using MAX32690 Arm© Cortex®-M4F and Bluetooth® 5.2 Low Energy (LE). The board also includes the MAX77654 PMIC for battery and power management. The form factor is a small 0.9in x 2.6in dual-row header footprint that is compatible with Adafruit Feather Wing peripheral expansion boards.
Hardware
MAX32690 MCU:
Ultra-Efficient Microcontroller for Battery-Powered Applications
120MHz Arm Cortex-M4 Processor with FPU
7.3728MHz and 60MHz Low-Power Oscillators
External Crystal Support (32MHz required for BLE)
32.768kHz RTC Clock (Requires External Crystal)
8kHz Always-On Ultra-Low Power Oscillator
3MB Internal Flash, 1MB Internal SRAM (832kB ECC ON)
85 μW/MHz ACTIVE mode at 1.1V
1.8V and 3.3V I/O with No Level Translators
External Flash & SRAM Expansion Interfaces
Bluetooth 5.2 LE Radio
Dedicated, Ultra-Low-Power, 32-Bit RISC-V Coprocessor to Offload Timing-Critical Bluetooth Processing
Fully Open-Source Bluetooth 5.2 Stack Available
Supports AoA, AoD, LE Audio, and Mesh
High-Throughput (2Mbps) Mode
Long-Range (125kbps and 500kbps) Modes
Rx Sensitivity: -97.5dBm; Tx Power: +4.5dBm
Single-Ended Antenna Connection (50Ω)
Multiple Peripherals for System Control
16-Channel DMA
Up To Five Quad SPI Master (60MHz)/Slave (48MHz)
Up To Four 1Mbaud UARTs with Flow Control
Up To Two 1MHz I2C Master/Slave
I2S Master/Slave
Eight External Channel, 12-bit 1MSPS SAR ADC w/ on-die temperature sensor
USB 2.0 Hi-Speed Device
16 Pulse Train Engines
Up To Six 32-Bit Timers with 8mA High Drive
Up To Two CAN 2.0 Controllers
Up To Four Micro-Power Comparators
1-Wire Master
Security and Integrity
ChipDNA Physically Un-clonable Function (PUF)
Modular Arithmetic Accelerator (MAA), True Random Number Generator (TRNG)
Secure Nonvolatile Key Storage, SHA-256, AES-128/192/256
Secure Boot ROM
Supported Features
Below interfaces are supported by Zephyr on MAX32690FTHR.
Interface |
Controller |
Driver/Component |
|---|---|---|
NVIC |
on-chip |
nested vector interrupt controller |
SYSTICK |
on-chip |
systick |
CLOCK |
on-chip |
clock and reset control |
GPIO |
on-chip |
gpio |
UART |
on-chip |
serial |
I2C |
on-chip |
i2c |
SPI |
on-chip |
spi |
Flash |
on-chip |
flash |
Programming and Debugging
Flashing
The MAX32690 MCU can be flashed by connecting an external debug probe to the SWD port. SWD debug can be accessed through the Cortex 10-pin connector, J4. Logic levels are fixed to VDDIO (1.8V).
Once the debug probe is connected to your host computer, then you can run the
west flash command to write a firmware image into flash. Here is an example
for the Hello World application.
# From the root of the zephyr repository
west build -b max32690fthr/max32690/m4 samples/hello_world
west flash
Note
This board uses OpenOCD as the default debug interface. You can also use a
Segger J-Link with Segger’s native tooling by overriding the runner,
appending --runner jlink to your west command(s). The J-Link should
be connected to the standard 2*5 pin debug connector (J4) using an
appropriate adapter board and cable.
Debugging
Once the debug probe is connected to your host computer, then you can run the
west debug command to write a firmware image into flash and start a debug
session. Here is an example for the Hello World application.
# From the root of the zephyr repository
west build -b max32690fthr/max32690/m4 samples/hello_world
west debug
