LoRa-E5 Dev Board

Overview

The LoRa-E5 Dev Board is a compact board for the evaluation of the Seeed Studio LoRa-E5 STM32WLE5JC module. The LoRa-E5-HF STM32WLE5JC Module supports multiple LPWAN protocols on the 868/915MHz frequency bands with up to 20.8dBm output power at 3.3V. All GPIOs of the LoRa-E5 Module are laid out supporting various data protocols and interfaces including RS-485 and Grove.

Hardware

The boards LoRa-E5 Module packages a STM32WLE5JC SOC, a 32MHz TCXO, and a 32.768kHz crystal oscillator in a 28-pin SMD package. This STM32WLEJC SOC is powered by ARM Cortex-M4 core and integrates Semtech SX126X LoRa IP to support (G)FSK, BPSK, (G)MSK, and LoRa modulations.

  • LoRa-E5 STM32WLE5JC Module with STM32WLE5JC multiprotocol LPWAN single-core 32-bit microcontroller (Arm® Cortex®-M4 at 48 MHz) in 28-pin SMD package featuring:

    • Ultra-low-power MCU

    • RF transceiver (150 MHz to 960 MHz frequency range) supporting LoRa®, (G)FSK, (G)MSK, and BPSK modulations

    • 256-Kbyte Flash memory and 64-Kbyte SRAM

    • Hardware encryption AES256-bit and a True random number generator

  • 1 user LED

  • 1 user, 1 boot, and 1 reset push-button

  • 32.768 kHz LSE crystal oscillator

  • 32 MHz HSE oscillator

  • 1 LM75A Temperature Sensor

  • 1 SPI-Flash Bonding Pad(not populated)

  • Board connectors:

    • USB Type-C connector

    • JST2.0 Battery connector (3-5V)

    • 3 Grove connectors(2x IIC and 1x UART)

    • RS-485 connector

    • SMA-K and IPEX antenna connectors

  • Delivered with SMA antenna (per default IPEX connector is disconnected)

  • Flexible power-supply options: USB Type C, JST2.0, 2x AA 3V Battery Holder, or external sources via header.

  • Switchable 3.3V and 5V power rails.

  • Comprehensive free software libraries and examples available with the STM32CubeWL MCU Package

  • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE

  • Suitable for rapid prototyping of end nodes based on LoRaWAN, Sigfox, wM-Bus, and many other proprietary protocols

More information about the board can be found at the LoRa-E5 Dev Board Wiki.

More information about LoRa-E5 STM32WLE5JC Module can be found here:

Supported Features

The Zephyr LoRa-E5 Dev Board configuration supports the following hardware features:

Interface

Controller

Driver/Component

ADC

on-chip

adc

AES

on-chip

crypto

COUNTER

on-chip

rtc

CLOCK

on-chip

reset and clock control

FLASH

on-chip

flash

GPIO

on-chip

gpio

I2C

on-chip

i2c

MPU

on-chip

arch/arm

NVIC

on-chip

arch/arm

PINMUX

on-chip

pinmux

RADIO

on-chip

LoRa

SPI

on-chip

spi

UART

on-chip

serial port-polling; serial port-interrupt

WATCHDOG

on-chip

independent watchdog

Other hardware features are not yet supported on this Zephyr port.

The default configuration can be found in:

Connections and IOs

LoRa-E5 Dev Board has 4 GPIO controllers. These controllers are responsible for pin muxing, input/output, pull-up, etc.

Available pins:

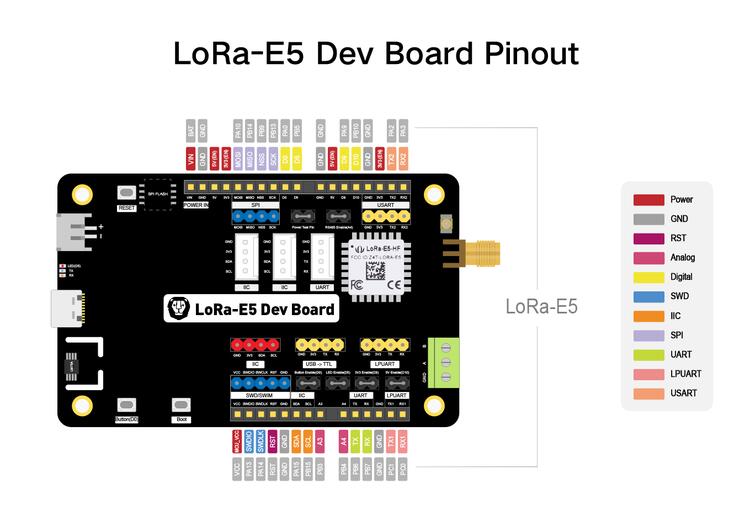

LoRa-E5 Dev Board Pinout

Default Zephyr Peripheral Mapping:

  • LPUART_1 TX : PC1

  • LPUART_1 RX : PC0

  • USART_1 TX : PB6

  • USART_1 RX : PB7

  • USART_2 TX : PA2

  • USART_2 RX : PA3

  • I2C_2_SCL : PB15

  • I2C_2_SDA : PA15

  • SPI_2_NSS : PB9

  • SPI_2_SCK : PB13

  • SPI_2_MISO : PB14

  • SPI_2_MOSI : PA10

  • BOOT_PB : PB13

  • USER_PB : PA0

  • LED_1 : PB5

  • ADC1 IN2 : PB3

Default Zephyr Peripheral to Connector Mapping:

  • RS-485: USART_2

  • grove_serial: USART_1

  • grove_i2c: I2C_2

Power Rails

The board has multiple power rails, which are always turned on in the default configuration.

Name

Derived from

Controlled by

MAIN

battery, USB, …

Always on

VCC

MAIN

Always on

5V

MAIN

SOC pin PB10

3V3

VCC

SOC pin PA9

A list of the devices and their power rails:

Device

Rail

STM32WLE5JC

VCC

RS-485 Transceiver

3V3

System Clock

LoRa-E5 Development board System Clock could be driven by the low-power internal(MSI), High-speed internal(HSI) or High-speed external(HSE) oscillator, as well as main PLL clock. By default System clock is driven by the MSI clock at 48MHz.

Programming and Debugging

Applications for the lora_e5_dev_board board configuration can be built the usual way (see Building an Application).

In the factory the module is flashed with an DFU bootloader, an AT command firmware, and the read protection level 1 is enabled. So before you can program a zephyr application to the module for the first time you have to reset the read protection to level 0. In case you use an st-link debugger you can use the STM32CubeProgrammer GUI to set the RDP option byte to AA, or use the STM32_Programmer_CLI passing the --readunprotect command to perform this read protection regression. The RDP level 1 to RDP level 0 regression will erase the factory programmed AT firmware, from which seeed studio has neither released the source code nor a binary. Also, note that on the module the BOOT0 pin of the SOC is not accessible, so the system bootloader will only be executed if configured in the option bytes.

Flashing

The LoRa-E5 Dev Board does not include a on-board debug probe. But the module can be debugged by connecting an external debug probe to the blue 2.54mm header labeled SWIM/SWD. Depending on the external probe used, openocd, the stm32cubeprogrammer, pyocd, blackmagic, or jlink runner can be used to flash the board. Additional notes:

  • Pyocd: For STM32WL support Pyocd needs additional target information, which can be installed by adding “pack” support with the following pyocd command:

$ pyocd pack --update
$ pyocd pack --install stm32wl

Flashing an application to LoRa-E5 Dev board

Connect the LoRa-E5 to your host computer using the external debug probe. Then build and flash an application. Here is an example for the Hello World application.

Run a serial host program to connect with your board: Per default the console on usart1 is available on the USB Type C connector via the built-in USB to UART converter.

$ picocom --baud 115200 /dev/ttyACM0

Then build and flash the application.

# From the root of the zephyr repository
west build -b lora_e5_dev_board samples/hello_world
west flash

Debugging

You can debug an application in the usual way. Here is an example for the Blinky application.

# From the root of the zephyr repository
west build -b lora_e5_dev_board samples/basic/blinky
west debug
