MikroE Quail
Overview

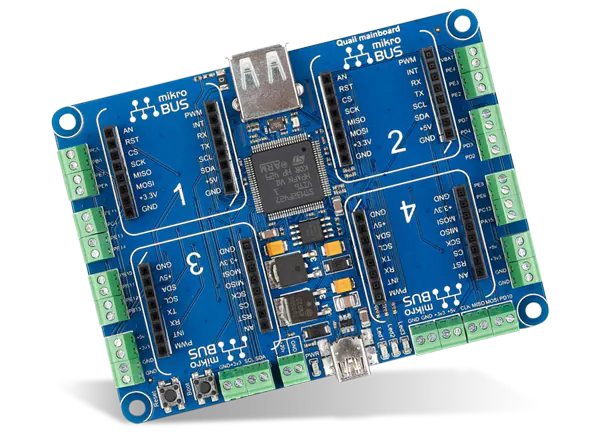

MikroE Quail for STM32 is a development board containing an STM32F427 [2] microcontroller. It is equipped with four mikroBUS sockets. The edges of the board are lined with screw terminals and USB ports for additional connectivity.
Hardware
The Quail board contains the following connections:
Four mikroBUS connectors
32 screw terminals
two USB ports, one for programming and one for external storage
Furthermore the board contains three LEDs that are connected to the microcontroller.
Supported Features
The mikroe_quail board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
Type |
Location |
Description |
Compatible |
|---|---|---|---|
CPU |
on-chip |
ARM Cortex-M4F CPU1 |
|
ADC |
on-chip |
STM32F4 ADC1 |
|
on-chip |
|||
CAN |
on-chip |
STM32 CAN controller2 |
|
Clock control |
on-chip |
STM32 RCC (Reset and Clock controller)1 |
|
on-chip |
STM32 HSE Clock1 |
||
on-chip |
|||
on-chip |
STM32F4 Main PLL1 |
||
on-chip |
STM32F4 PLL I2S1 |
||
on-chip |
STM32 Microcontroller Clock Output (MCO)2 |
||
Counter |
on-chip |
STM32 counters12 |
|
DAC |
on-chip |
STM32 family DAC1 |
|
DMA |
on-chip |
STM32 DMA controller (V1)2 |
|
Ethernet |
on-chip |
STM32 Ethernet Controller1 |
|
on-chip |
ST STM32 Ethernet MAC, a child node of the Ethernet controller1 |
||
Flash controller |
on-chip |
STM32 Family flash controller1 |
|
GPIO & Headers |
on-chip |
STM32 GPIO Controller11 |
|
on-board |
GPIO pins exposed on Mikro BUS headers4 |
||
I2C |
on-chip |
||
I2S |
on-chip |
STM32 I2S controller2 |
|
Interrupt controller |
on-chip |
ARMv7-M NVIC (Nested Vectored Interrupt Controller)1 |
|
on-chip |
STM32 External Interrupt Controller1 |
||
LED |
on-board |
Group of GPIO-controlled LEDs1 |
|
MDIO |
on-chip |
STM32 MDIO Controller1 |
|
Memory controller |
on-chip |
STM32 Battery Backed RAM1 |
|
on-chip |
STM32 Flexible Memory Controller (FMC)1 |
||
on-chip |
STM32 Flexible Memory Controller (SDRAM controller)1 |
||
MMC |
on-chip |
STM32 SDMMC Disk Access1 |
|
MTD |
on-chip |
STM32F4 flash memory1 |
|
on-board |
Properties supporting Zephyr spi-nor flash driver (over the Zephyr SPI API) control of serial flash memories using the standard M25P80-based command set1 |
||
PHY |
on-chip |
This binding is to be used by all the usb transceivers which are built-in with USB IP2 |
|
Pin control |
on-chip |
STM32 Pin controller1 |
|
Power management |
on-chip |
STM32 power controller1 |
|
PWM |
on-chip |
STM32 PWM12 |
|
Reset controller |
on-chip |
STM32 Reset and Clock Control (RCC) Controller1 |
|
RNG |
on-chip |
STM32 Random Number Generator1 |
|
RTC |
on-chip |
STM32 RTC1 |
|
Sensors |
on-chip |
STM32 quadrature decoder6 |
|
on-chip |
STM32 family TEMP node for production calibrated sensors with two calibration temperatures1 |
||
on-chip |
STM32 VREF+1 |
||
on-chip |
STM32 VBAT1 |
||
Serial controller |
on-chip |
STM32 USART4 |
|
on-chip |
STM32 UART4 |
||
SMbus |
on-chip |
STM32 SMBus controller3 |
|
SPI |
on-chip |
||
SRAM |
on-chip |
Generic on-chip SRAM1 |
|
Timer |
on-chip |
ARMv7-M System Tick1 |
|
on-chip |
STM32 timers14 |
||
USB |
on-chip |
STM32 OTGFS controller1 |
|
on-chip |
STM32 OTGHS controller1 |
||
Watchdog |
on-chip |
STM32 watchdog1 |
|
on-chip |
STM32 system window watchdog1 |
Connections and IOs
The four mikroBUS interfaces are aliased in the device tree so that their
peripherals can be accessed using mikrobus_N_INTERFACE so e.g. the SPI on
bus 2 can be found by the alias mikrobus_2_spi. The numbering corresponds
with the marking on the board.
For connections on the edge connectors, please refer to Quail for STM32 User Manual [1].
Programming and Debugging
The mikroe_quail board supports the runners and associated west commands listed below.
| flash | debug | attach | debugserver | rtt | |
|---|---|---|---|---|---|
| dfu-util | ✅ (default) | ||||
| jlink | ✅ | ✅ (default) | ✅ | ✅ | ✅ |
Applications for the mikroe_quail board can be built and flashed in the usual way
(see Building an Application and Run an Application for more details).
Flashing
The board ships with a locked flash, and will fail with the message:
Error: stm32x device protected
Unlocking with OpenOCD makes it possible to flash.
$ openocd -f /usr/share/openocd/scripts/interface/stlink-v2.cfg \
-f /usr/share/openocd/scripts/target/stm32f4x.cfg -c init\
-c "reset halt" -c "stm32f4x unlock 0" -c "reset run" -c shutdown
Here is an example for the Hello World application.
# From the root of the zephyr repository
west build -b mikroe_quail samples/hello_world
west flash
You should see the following message on the console:
Hello World! mikroe_quail
Debugging
You can debug an application in the usual way. Here is an example for the Hello World application.
# From the root of the zephyr repository
west build -b mikroe_quail samples/hello_world
west debug
