Thing Plus Matter

Board Overview

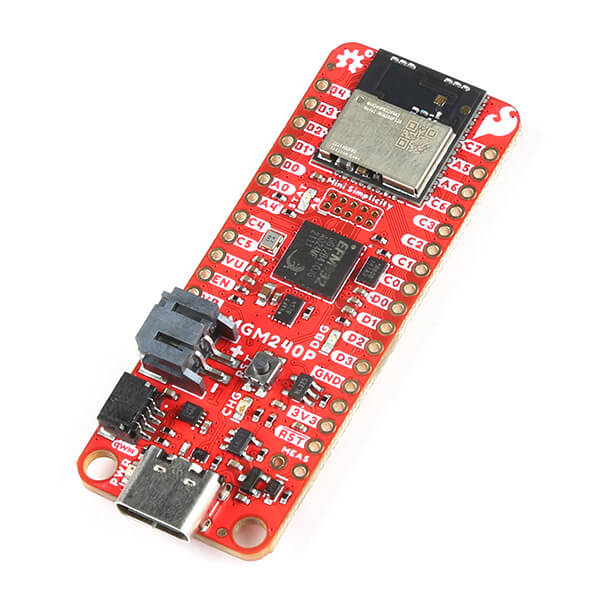

Thing Plus Matter

Name:

sparkfun_thing_plus_matter_mgm240p

Vendor:

SparkFun Electronics

Architecture:

arm

SoC:

efr32mg24b020f1536im40

Browse board sources

Overview

The MGM240P Mighty Sparkfun Think Plus Matter contains a Wireless System-On-Chip from the EFR32MG24 family built on an ARM Cortex®-M33F processor with excellent low power capabilities.

Hardware

• Based on the Series 2 EFR32MG24 SoC

• CPU core: 32-bit ARM® Cortex®-M33 core at 39 MHz

• Flash memory: 1536 kB

• RAM: 256 kB

• Supports Multiple 802.15.4 Wireless Protocols (Zigbee and OpenThread)

• Bluetooth Low Energy 5.3

• Crystals for LFXO (32 kHz) and HFXO (39 MHz).

For more information about the EFR32MG24 SoC and BRD2601B board, refer to these documents:

• EFR32MG24 Website

• EFR32MG24 Datasheet

• EFR32xG24 Reference Manual

• MGM240P Datasheet

• MGM240P Schematics

Supported Features

The sparkfun_thing_plus_matter_mgm240p board supports the hardware features listed below.

on-chip / on-board

Feature integrated in the SoC / present on the board.

2 / 2

Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.

vnd,foo

Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

sparkfun_thing_plus_matter_mgm240p

/

efr32mg24b020f1536im40

sparkfun_thing_plus_matter_mgm240p/efr32mg24b020f1536im40 target

Type	Location	Description	Compatible
CPU	on-chip	ARM Cortex-M33 CPU1	arm,cortex-m33
ADC	on-chip	Silicon Labs Series 2 IADC1	silabs,gecko-iadc
Bluetooth	on-chip	Silicon Labs Series 2 Bluetooth HCI1	silabs,bt-hci-efr32
Clock control	on-chip	Silicon Labs Series 2 CMU1	silabs,series-clock
	on-chip	Generic fixed-rate clock provider3	fixed-clock
	on-chip	Silicon Labs Series 2 HFXO1	silabs,hfxo
	on-chip	Silicon Labs Series 2 LFXO1	silabs,series2-lfxo
	on-chip	Silicon Labs Series 2 HFRCODPLL1	silabs,series2-hfrcodpll
	on-chip	Silicon Labs Series 2 HFRCOEM231	silabs,series2-hfrcoem23
	on-chip	Silicon Labs Series 2 LFRCO1	silabs,series2-lfrco
	on-chip	Generic fixed factor clock provider20	fixed-factor-clock
Comparator	on-chip	Silicon Labs Series 2 ACMP1	silabs,acmp
Cryptographic accelerator	on-chip	Silicon Labs Series 2 SE Mailbox1	silabs,gecko-semailbox
Debug	on-chip	ARMv8 instrumentation trace macrocell1	arm,armv8m-itm
DMA	on-chip	Silicon Labs Series 2 LDMA1	silabs,ldma
Flash controller	on-chip	Silicon Labs Series 2 MSC1	silabs,series2-flash-controller
GPIO & Headers	on-chip	Silicon Labs Series 0-2 GPIO Peripheral1	silabs,gecko-gpio
	on-chip	Silicon Labs Series 0-2 GPIO Port4	silabs,gecko-gpio-port
I2C	on-chip	Silicon Labs Series 0-2 I2C1	silabs,gecko-i2c
Interrupt controller	on-chip	ARMv8-M NVIC (Nested Vectored Interrupt Controller)1	arm,v8m-nvic
LED	on-board	Group of GPIO-controlled LEDs1	gpio-leds
Miscellaneous	on-board	GPIO Wake Up Trigger for EFR32BG22/EFR32BG271	silabs,gecko-wake-up-trigger
MTD	on-chip	Flash node1	soc-nv-flash
	on-board	Fixed partitions of a flash (or other non-volatile storage) memory1	fixed-partitions
Networking	on-chip	Silicon Labs Series 2 Radio Interface1	silabs,series2-radio
Pin control	on-chip	Silicon Labs Series 2 DBUS Pin Controller1	silabs,dbus-pinctrl
Regulator	on-chip	Silicon Labs Series 2 DC-DC converter1	silabs,series2-dcdc
RTC	on-chip	Silicon Labs Series 2 Sleeptimer1	silabs,gecko-stimer
Serial controller	on-chip	Silicon Labs Series 2 USART1	silabs,usart-uart
SPI	on-chip	Silicon Labs Series 2 EUSART 1 1	silabs,eusart-spi
SRAM	on-chip	Generic on-chip SRAM1	mmio-sram
Timer	on-chip	ARMv8-M System Tick1	arm,armv8m-systick
	on-chip	Silicon Labs Series 2 BURTC1	silabs,gecko-burtc
Watchdog	on-chip	Silicon Labs Series 1-2 WDOG1 1	silabs,gecko-wdog

Connections and IOs

In the following table, the column Name contains Pin names. For example, PA2 means Pin number 2 on PORTA, as used in the board’s datasheets and manuals.

Name	Function	Usage
PA8	GPIO	LED0
PA5	USART0_TX	UART Console EFM_BC_TX US0_TX
PA6	USART0_RX	UART Console EFM_BC_RX US0_RX

The default configuration can be found in boards/sparkfun/thing_plus_matter_mgm240p/sparkfun_thing_plus_matter_mgm240p_defconfig

System Clock

The EFR32MG24 SoC is configured to use the 39 MHz external oscillator on the board.

Serial Port

The EFR32MG24 SoC has one USART and two EUSARTs. USART0 is connected to the board controller and is used for the console.

Programming and Debugging

The sparkfun_thing_plus_matter_mgm240p board supports the runners and associated west commands listed below.

	flash	debug	rtt	attach	debugserver
jlink	✅ (default)	✅ (default)	✅	✅	✅

Note

Before using the kit the first time, you should update the J-Link firmware in Simplicity Studio.

Flashing

The sample application Hello World is used for this example. Build the Zephyr kernel and application:

# From the root of the zephyr repository
west build -b sparkfun_thing_plus_mgm240p samples/hello_world

Connect the sparkfun_thing_plus_mgm240p to your host computer using the USB port and you should see a USB connection.

Open a serial terminal (minicom, putty, etc.) with the following settings:

• Speed: 115200

• Data: 8 bits

• Parity: None

• Stop bits: 1

Reset the board and you’ll see the following message on the corresponding serial port terminal session:

Hello World! _sparkfun_thing_plus_matter_mgm240p

Bluetooth

To use the BLE function, run the command below to retrieve necessary binary blobs from the SiLabs HAL repository.

west blobs fetch silabs

Then build the Zephyr kernel and a Bluetooth sample with the following command. The Observer sample application is used in this example.

# From the root of the zephyr repository
west build -b sparkfun_thing_plus_matter_mgm240p samples/bluetooth/observer
