STM32 Minimum Development Board

Overview

The STM32 Minimum Development Board, is a popular and inexpensive breadboard-friendly breakout board for the STM32F103x8 CPU. There are two variants of the board:

  • Blue Pill Board

  • Black Pill Board

Zephyr applications can use the stm32_min_dev@blue or stm32_min_dev@black board configuration to use these boards.

As the name suggests, these boards have the bare minimum components required to power on the CPU. For practical use, you’ll need to add additional components and circuits using a breadboard, for example.

Pin Mapping

This port is a starting point for your own customizations and not a complete port for a specific board. Most of the GPIOs on the STM32 SoC has been exposed in the external header with silk screen labels that match the SoC’s pin names.

Each board vendor has their own variations in pin mapping on their boards’ external connectors and placement of components. Many vendors use port PC13/PB12 for connecting an LED, so only this device is supported by our Zephyr port. Additional device support is left for the user to implement.

More information on hooking up peripherals and lengthy how to articles can be found at EmbedJournal.

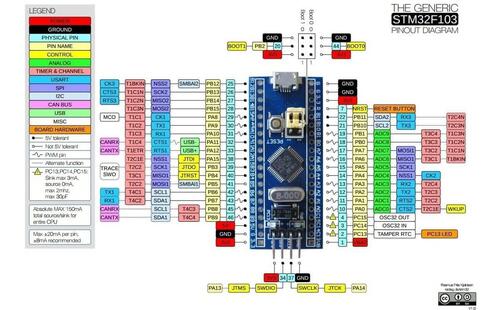

The pinout diagram of STM32 Minimum Development Blue Pill board can be seen below. The Black Pill’s one is similar:

Pinout for STM32 Minimum Development Blue Pill Board

Pinout for STM32 Minimum Development Blue Pill Board

STLinkV2 connection:

The board can be flashed by using STLinkV2 with the following connections.

Pin

STLINKv2

G

GND

CLK

Clock

IO

SW IO

V3

VCC

Boot Configuration

The boot configuration for this board is configured through jumpers on B0 (Boot 0) and B1 (Boot 1). The pins B0 and B1 are present in between logic 0 and 1 lines. The silk screen on the PCB reads BX- or BX+ to indicate 0 and 1 logic lines for B0 and B1 respectively.

Boot 1

Boot 0

Boot Mode

Aliasing

X

0

Main Flash Memory

Main flash memory is selected as boot space

0

1

System Memory

System memory is selected as boot space

1

1

Embedded SRAM

Embedded SRAM is selected as boot space

Supported Features

The stm32_min_dev board configuration supports the following hardware features:

Interface

Controller

Driver/Component

NVIC

on-chip

nested vectored interrupt controller

SYSTICK

on-chip

system clock

UART

on-chip

serial port

GPIO

on-chip

gpio

I2C

on-chip

i2c

PWM

on-chip

pwm

SPI

on-chip

spi

USB

on-chip

USB device

ADC

on-chip

adc

Other hardware features have not been enabled yet for this board.

Connections and IOs

Default Zephyr Peripheral Mapping:

  • UART_1 TX/RX: PA9/PA10

  • UART_2 TX/RX: PA2/PA3

  • UART_3 TX/RX: PB10/PB11

  • I2C_1 SCL/SDA : PB6/PB7

  • I2C_2 SCL/SDA : PB10/PB11

  • PWM_1_CH1: PA8

  • SPI_1 NSS_OE/SCK/MISO/MOSI: PA4/PA5/PA6/PA7

  • SPI_2 NSS_OE/SCK/MISO/MOSI: PB12/PB13/PB14/PB15

  • USB_DC DM/DP: PA11/PA12

  • ADC_1: PA0

System Clock

The on-board 8Mhz crystal is used to produce a 72Mhz system clock with PLL.

Serial Port

STM32 Minimum Development Board has 3 U(S)ARTs. The Zephyr console output is assigned to UART_1. Default settings are 115200 8N1.

On-Board LEDs

The board has one on-board LED that is connected to PB12/PC13 on the black/blue variants respectively.

Programming and Debugging

Applications for the stm32_min_dev@(blue|black) board configuration can be built and flashed in the usual way (see Building an Application and Run an Application for more details).

Flashing

Here is an example for the Blinky application.

# From the root of the zephyr repository
west build -b stm32_min_dev samples/basic/blinky
west flash

Debugging

You can debug an application in the usual way. Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b stm32_min_dev samples/hello_world
west debug
