cv64a6_genesys_2

Overview

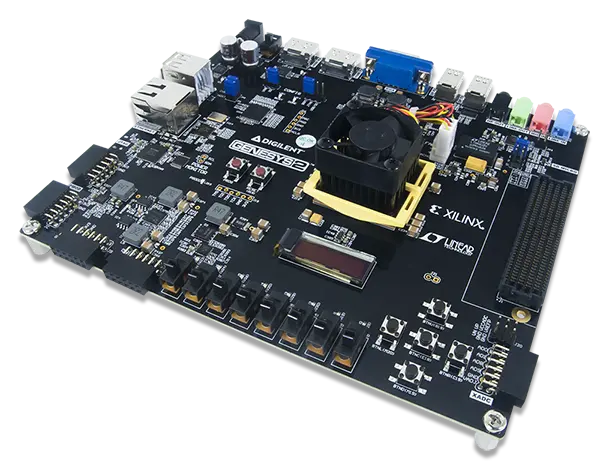

The Digilent Genesys 2 board features a Xilinx Kintex-7 FPGA which can run various softcore CPUs. In this configuration, the Genesys 2 is configured with a 64-bit version of the CVA6 RISC-V CPU. The SoC is configured with a memory controller interfacing with the Genesys’ DRAM, PLIC and CLINT interrupt controllers, a UART device interfacing with the Genesys’ USB UART, a RISC-V compatible debug module that interfaces with the Genesys’ FTDI (USB JTAG) chip, a Xilinx SPI interface interfacing with the Genesys’ SD card slot and a Xilinx GPIO interfacing with the Genesys’ LEDs and switches. The complete hardware sources (see first reference) in conjunction with instructions for compiling and loading the configuration onto the Genesys 2 are available.

See the following references for more information:

Hardware

  • CVA6 CPU with RV64imafdc instruction sets and an SV39 MMU

  • 1 GB DDR3 DRAM

  • 10/100/1000 Ethernet with copper interface, lowRISC Ethernet MAC

  • ns16550a-compatible USB UART, 115200 baud

  • RISCV debug module, connected via on-board FTDI (USB JTAG)

  • Xilinx SPI controller, connected to microSD slot

  • Xilinx GPIO, connected to 7 switches and LEDs

Supported Features

The cv64a6_genesys_2 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
cv64a6_genesys_2
/
cv64a6_imafdc

Type

Location

Description

Compatible

CPU

on-chip

OpenHW Group CVA6 CPU1

openhwgroup,cva6

Clock control

on-chip

Generic fixed-rate clock provider2

fixed-clock

DMA

on-chip

Xilinx AXI DMA LogiCORE IP controller with compatibility string generated in use with the AXI Ethernet subsystem1

xlnx,eth-dma

GPIO & Headers

on-chip

Xilinx AXI GPIO IP1

xlnx,xps-gpio-1.00.a

Interrupt controller

on-chip

SiFive RISCV-V platform-local interrupt controller1

sifive,plic-1.0.0

on-chip

SiFive RISC-V Core-Local Interruptor1

sifive,clint0

on-chip

RISC-V CPU interrupt controller1

riscv,cpu-intc

Serial controller

on-chip

ns16550 UART1

ns16550

SPI

on-chip

Xilinx AXI Quad SPI controller1

xlnx,xps-spi-2.00.a

Timer

on-chip

RISC-V Machine Timer1

riscv,machine-timer

Programming and Debugging

Loading the FPGA configuration

You need to build a bitstream with Xilinx Vivado and load it into the FPGA before you can load zephyr onto the board. Please refer to the CVA6 documentation for the required steps. This configuration is compatible with the following build target: cv64a6_imafdc_sv39

Flashing

west flash is supported via the openocd runner. Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b cv64a6_genesys_2 samples/hello_world
west flash

Debugging

west debug, attach and debugserver commands are supported via the openocd runner. Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b cv64a6_genesys_2 samples/hello_world
west debug
