cv32a6_genesys_2

Overview

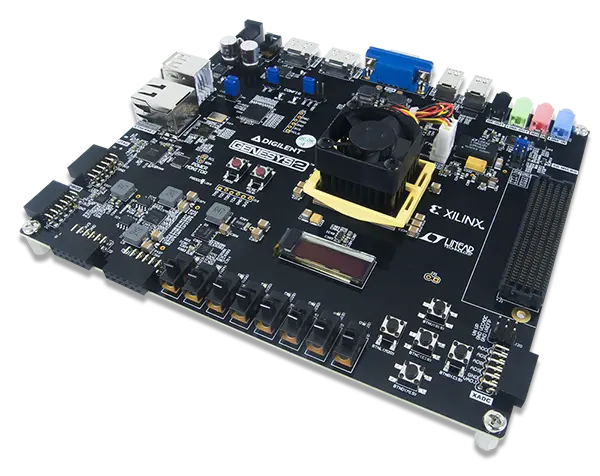

The Digilent Genesys 2 board features a Xilinx Kintex-7 FPGA which can run various softcore CPUs. In this configuration, the Genesys 2 is configured with a 32-bit version of the CVA6 RISC-V CPU. The SoC is configured with a memory controller interfacing with the Genesys’ DRAM, PLIC and CLINT interrupt controllers, a UART device interfacing with the Genesys’ USB UART, a RISC-V compatible debug module that interfaces with the Genesys’ FTDI (USB JTAG) chip, a Xilinx SPI interface interfacing with the Genesys’ SD card slot and a Xilinx GPIO interfacing with the Genesys’ LEDs and switches. The complete hardware sources (see first reference) in conjunction with instructions for compiling and loading the configuration onto the Genesys 2 are available.

See the following references for more information:

Hardware

  • CVA6 CPU with RV32imac instruction sets with PLIC, CLINT interrupt controllers.

  • 1 GB DDR3 DRAM

  • 10/100/1000 Ethernet with copper interface, lowRISC Ethernet MAC

  • ns16550a-compatible USB UART, 115200 baud

  • RISCV debug module, connected via on-board FTDI (USB JTAG)

  • Xilinx SPI controller, connected to microSD slot

  • Xilinx GPIO, connected to 7 switches and LEDs

Supported Features

The cv32a6_genesys_2 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

Programming and Debugging

Loading the FPGA configuration

You need to build a bitstream with Xilinx Vivado and load it into the FPGA before you can load zephyr onto the board. Please refer to the CVA6 documentation for the required steps. This configuration is compatible with the following build targets: cv32a6_imac_sv0, cv32a6_imac_sv32, cv32a6_imafc_sv32, cv32a6_ima_sv32_fpga.

Flashing

west flash is supported via the openocd runner. Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b cv32a6_genesys_2 samples/hello_world
west flash

Debugging

west debug, attach and debugserver commands are supported via the openocd runner. Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b cv32a6_genesys_2 samples/hello_world
west debug
