FANKE FK7B0M1-VBT6

Overview

The FK7B0M1-VBT6 core board by FANKE Technology Co., Ltd. is an advanced microcontroller platform based on the STMicroelectronics Arm® Cortex®-M7 core STM32H7B0VBT6 microcontroller. This board is an ideal solution for developers looking to create high-performance applications, especially in the field of Human-Machine Interface (HMI), leveraging its robust capabilities and support for sophisticated display and touch technologies.

The FK7B0M1-VBT6 is designed as a reference design for user application development before transitioning to the final product, significantly simplifying the development process. Its wide range of hardware features, including advanced display and touch capabilities, make it exceptionally suitable for HMI applications, allowing for comprehensive evaluation and testing of peripherals and functionalities.

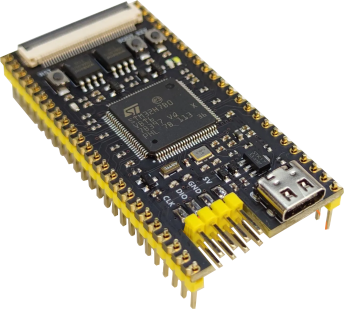

FK7B0M1-VBT6

FK7B0M1-VBT6 (Credit: FANKE Technology Co., Ltd)

Hardware

FK7B0M1-VBT6 provides the following hardware components:

  • STM32H7B6VB in LQFP100 package

  • ARM 32-bit Cortex-M7 CPU with FPU

  • 280 MHz max CPU frequency

  • VDD from 1.62 V to 3.6 V

  • 128 KB Flash

  • ~1.4 MB SRAM max (1.18 Mbytes user SRAM + 64 Kbytes ITCM RAM + 128 Kbytes DTCM RAM + 4 Kbytes SRAM in Backup domain)

  • Main clock: External 25MHz crystal oscillator.

  • RTC: 32.768kHz crystal oscillator.

  • 32-bit timers(2)

  • 16-bit timers(12)

  • 1 reset button, 1 user button, and 1 BOOT button

  • 1 user LED

  • External 64-Mbit QSPI (W25Q64) NOR Flash memory.

  • External 64-Mbit SPI (W25Q64) NOR Flash memory.

  • USB OTG Full Speed and High Speed(1)

  • 1 micro SD card

  • 1 RGB LCD interface

  • SWD and serial port accessibility through a pin header

  • Bring out 39 IO ports

More information about STM32H7B0VB can be found here:

Supported Features

The Zephyr fk7b0m1_vbt6 board configuration supports the following hardware features:

Interface

Controller

Driver/Component

NVIC

on-chip

nested vector interrupt controller

FLASH

on-chip

flash memory

UART

on-chip

serial port

PINMUX

on-chip

pinmux

GPIO

on-chip

gpio

RNG

on-chip

True Random number generator

Backup SRAM

on-chip

Backup SRAM

SPI

on-chip

spi bus

OCTOSPI

on-chip

octospi

Other hardware features are not yet supported on this Zephyr port.

The default configuration per core can be found in boards/fanke/fk7b0m1_vbt6/fk7b0m1_vbt6_defconfig

Pin Mapping

FK7B0M1-VBT6 board has 5 GPIO controllers. These controllers are responsible for pin muxing, input/output, pull-up, etc.

FK7B0M1-VBT6

FK7B0M1-VBT6 (Credit: FANKE Technology Co., Ltd)

Default Zephyr Peripheral Mapping:

The FK7B0M1-VBT6 board is configured as follows

  • UART_1 TX/RX : PA9/PA10 (available on the header pins)

  • User LED (blue) : PC1

  • User PB : PC13

  • SPI1 NCS/CLK/MISO/MOSI : PA15/PB3/PB4/PB5 (NOR Flash)

  • QuadSPI NCS/CLK/IO0/IO1/IO2/IO3 : PB6/PB2/PD11/PD12/PE2/PD13 (NOR Flash)

  • USB DM/DP : PA11/PA12

System Clock

The FK7B0M1-VBT6 System Clock could be driven by an internal or external oscillator, as well as by the main PLL clock. By default the system clock is driven by the PLL clock at 280MHz, driven by an 25MHz external crystal oscillator.

Serial Port

The Zephyr console output is assigned to UART1. The default communication settings are 115200 8N1.

Programming and Debugging

Applications for the fk7b0m1_vbt6 board configuration can be built and flashed in the usual way (see Building an Application and Run an Application for more details).

Flashing

The FK7B0M1-VBT6 board does not include an on-board debugger. As a result, it requires an external debugger, such as ST-Link, for programming and debugging purposes.

The board provides header pins for the Serial Wire Debug (SWD) interface.

Flashing an application to FK7B0M1-VBT6

To begin, connect the ST-Link Debug Programmer to the FK7B0M1-VBT6 board using the SWD interface. Next, connect the ST-Link to your host computer via a USB port. Once this setup is complete, you can proceed to build and flash your application to the board

Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b fk7b0m1_vbt6 samples/hello_world
west flash

Run a serial host program to connect with your board:

$ minicom -D /dev/ttyACM0 -b 115200

Then, press the RESET button, you should see the following message:

Hello World! fk7b0m1_vbt6

Debugging

This current Zephyr port does not support debugging.
