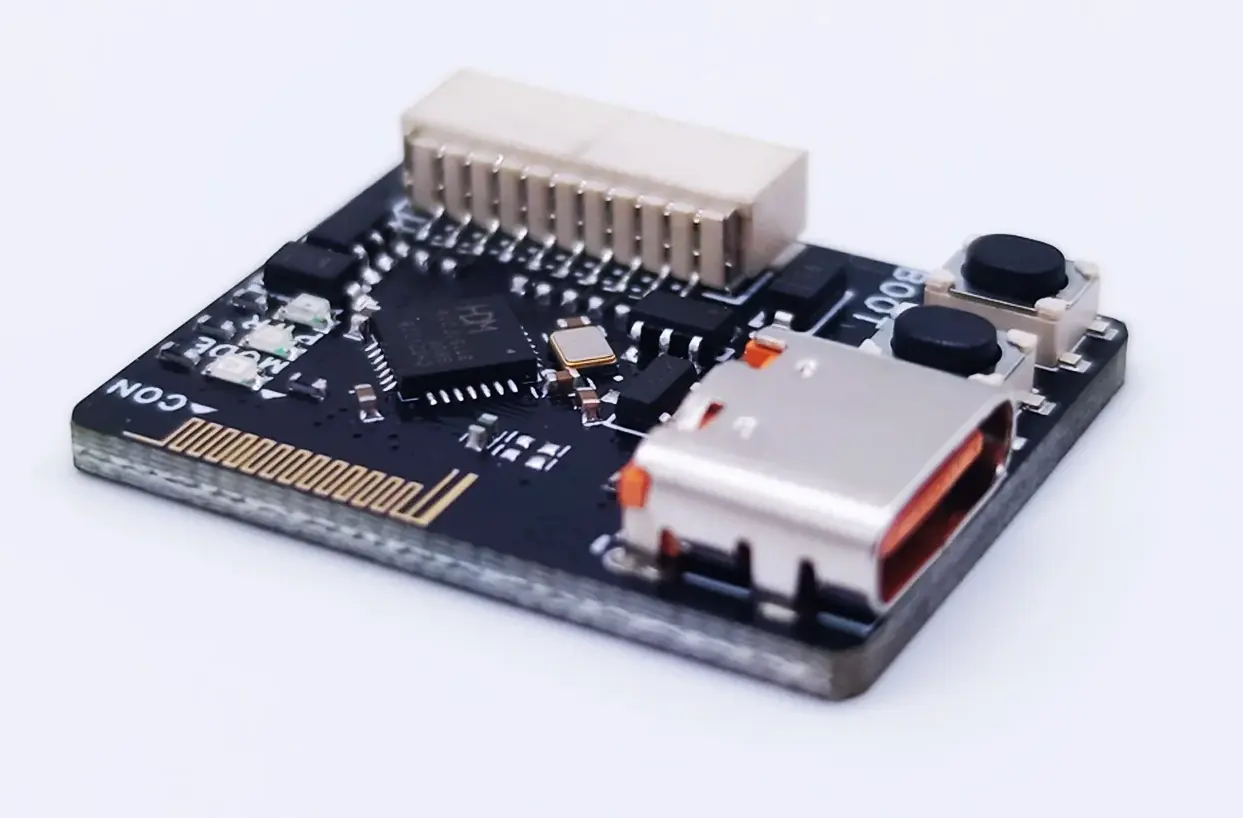

WCH LinkW

Overview

The WCH [1] LinkW hardware provides support for QingKe 32-bit RISC-V4C processor and the following devices:

  • CLOCK

  • GPIO

  • NVIC

The board is equipped with two LEDs and two Buttons. The WCH webpage on CH32V208 [2] contains the processor’s manuals. The WCH webpage on LinkW [3] contains the LinkW’s schematic.

Hardware

The QingKe 32-bit RISC-V4C processor of the WCH LinkW is clocked by an external 32 MHz crystal or the internal 8 MHz oscillator and runs up to 144 MHz. The CH32V208 SoC Features 4 USART, 4 GPIO ports, 2 SPI, 2 I2C, ADC, RTC, CAN, 2 USB Device, USB Host, OPA, ETH with PHY, several timers, and BLE 5.3.

Supported Features

The linkw board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
linkw
/
ch32v208

Type

Location

Description

Compatible

CPU

on-chip

WCH QingKe V4C RISC-V MCU1

wch,qingke-v4c

Clock control

on-chip

WCH CH32V00x Reset and Clock Control (RCC)1

wch,rcc

on-chip

WCH CH32V00x HSE Clock1

wch,ch32v00x-hse-clock

on-chip

WCH CH32V00x HSI Clock1

wch,ch32v00x-hsi-clock

on-chip

Generic fixed-rate clock provider1

fixed-clock

on-chip

WCH CH32V20x/30x PLL1

wch,ch32v20x_30x-pll-clock

GPIO & Headers

on-chip

WCH CH32V00x General-Purpose Input/Output (GPIO)4

wch,gpio

Input

on-board

Group of GPIO-bound input keys1

gpio-keys

Interrupt controller

on-chip

WCH CH32V00x Programmable Fast Interrupt Controller (PFIC)1

wch,pfic

LED

on-board

Group of GPIO-controlled LEDs1

gpio-leds

MTD

on-chip

Flash node1

soc-nv-flash

Pin control

on-chip

WCH CH32V20x/30x AFIO1

wch,20x_30x-afio

Serial controller

on-chip

WCH CH32V00x UART1 3

wch,usart

SRAM

on-chip

Generic on-chip SRAM1

mmio-sram

Timer

on-chip

WCH CH32V00x Systick1

wch,systick

Connections and IOs

LED

  • LED0 = Green Mode LED

  • LED1 = Blue Activity LED

Button

  • SW0 = Mode Select Button (Active Low)

  • SW1 = Bootstrap Button (Active High)

Programming and Debugging

The linkw board supports the runners and associated west commands listed below.

flash debug debugserver attach rtt
minichlink ✅
openocd ✅ (default) ✅ (default) ✅ ✅ ✅

Applications for the linkw board target can be built and flashed in the usual way (see Building an Application and Run an Application for more details); however, an external programmer is required since the board does not have any built-in debug support.

The following pins of the external programmer must be connected to the following pins on the PCB:

  • VCC = VCC

  • GND = GND

  • SWIO = PA13

  • SWCLK = PA14

Flashing

You can use minichlink to flash the board. Once minichlink has been set up, build and flash applications as usual (see Building an Application and Run an Application for more details).

Here is an example for the Blinky application.

# From the root of the zephyr repository
west build -b linkw samples/basic/blinky
west flash

Debugging

This board can be debugged via OpenOCD or minichlink.
