Nucleo F303K8

Overview

The Nucleo F303K8 board features an ARM Cortex-M4 based STM32F303K8 mixed-signal MCU with FPU and DSP instructions capable of running at 72 MHz. Here are some highlights of the Nucleo F303K8 board:

  • STM32 microcontroller in LQFP32 package

  • one type of extension resources:

  • Arduino™ Nano V3 connectivity support

  • On-board ST-LINK/V2-1 debugger/programmer with SWD connector

  • Flexible board power supply:

  • 5 V from ST-LINK/V2-1 USB VBUS

  • External power sources: 3.3 V, 5V and 7 - 12 V

  • One user LED

  • One push-buttons: RESET

More information about the board can be found at the Nucleo F303K8 website, and in the STM32 Nucleo-32 board User Manual.

Hardware

The Nucleo F303K8 provides the following hardware components:

  • STM32F303K8T6 in LQFP32 package

  • ARM® 32-bit Cortex® -M4 CPU with FPU

  • 72 MHz max CPU frequency

  • VDD from 2.0 V to 3.6 V

  • 64 KB Flash

  • 12 KB SRAM

  • RTC

  • Advanced-control Timer

  • General Purpose Timers (5)

  • Basic Timer (2)

  • Watchdog Timers (2)

  • PWM channels (12)

  • SPI/I2S (1)

  • I2C (1)

  • USART/UART (2)

  • CAN (1)

  • GPIO with external interrupt capability

  • DMA channels (7)

  • Capacitive sensing channels (18)

  • 12-bit ADC with 21 channels

  • 12-bit D/A converter

  • Analog comparator (3)

  • Op amp

More information about the STM32F303K8 can be found here:

Supported Features

The Zephyr nucleo_f303k8 board configuration supports the following hardware features:

Interface

Controller

Driver/Component

NVIC

on-chip

nested vector interrupt controller

UART

on-chip

serial port-polling; serial port-interrupt

PINMUX

on-chip

pinmux

GPIO

on-chip

gpio

PWM

on-chip

pwm

I2C

on-chip

i2c

SPI

on-chip

spi

ADC

on-chip

ADC Controller

Other hardware features are not yet supported on this Zephyr port.

The default configuration can be found in boards/st/nucleo_f303k8/nucleo_f303k8_defconfig

Connections and IOs

The Nucleo F303K8 Board has 1 GPIO controller. This controllers is responsible for input/output, pull-up, etc.

Board connectors:

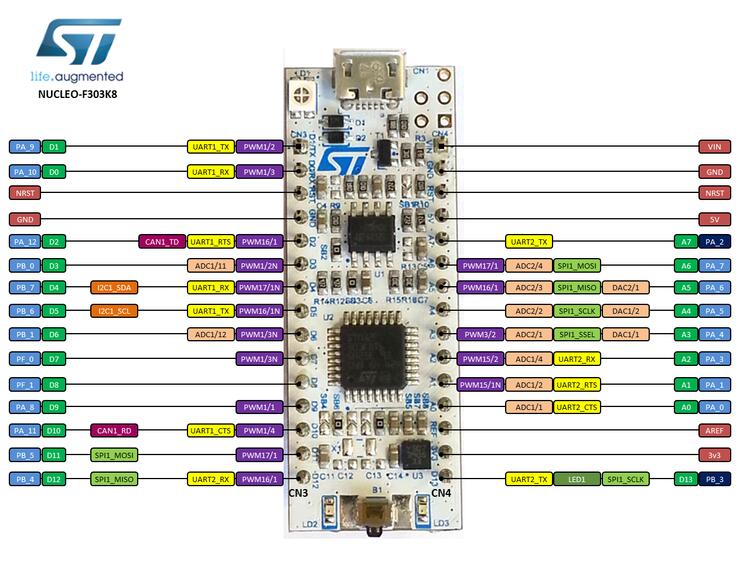

Nucleo F303K8 connectors

Default Zephyr Peripheral Mapping:

The Nucleo F303K8 board features an Arduino Zero V3 connector. Board is configured as follows:

  • UART_2 TX/RX : PA2/PA15 (ST-Link Virtual Port Com)

  • I2C1 SCL/SDA : PB7/PB6

  • SPI1 CS/SCK/MISO/MOSI : PA_4/PA_5/PA_6/PA_7

  • LD2 : PB3

System Clock

The Nucleo F303K8 System Clock can be driven by an internal or external oscillator, as well as by the main PLL clock. By default the System Clock is driven by the PLL clock at 72 MHz. The input to the PLL is an 8 MHz internal clock supply.

Serial Port

The Nucleo F303K8 board has 2 UARTs. The Zephyr console output is assigned to UART2. Default settings are 115200 8N1.

Programming and Debugging

The Nucleo F303K8 board includes an ST-LINK/V2-1 embedded debug tool interface.

Flashing

The board is configured to be flashed using west STM32CubeProgrammer runner, so its installation is required.

Alternatively, OpenOCD, JLink, or pyOCD can also be used to flash the board using the --runner (or -r) option:

$ west flash --runner openocd
$ west flash --runner jlink
$ west flash --runner pyocd
