SF32LB52-DevKit-LCD

Overview

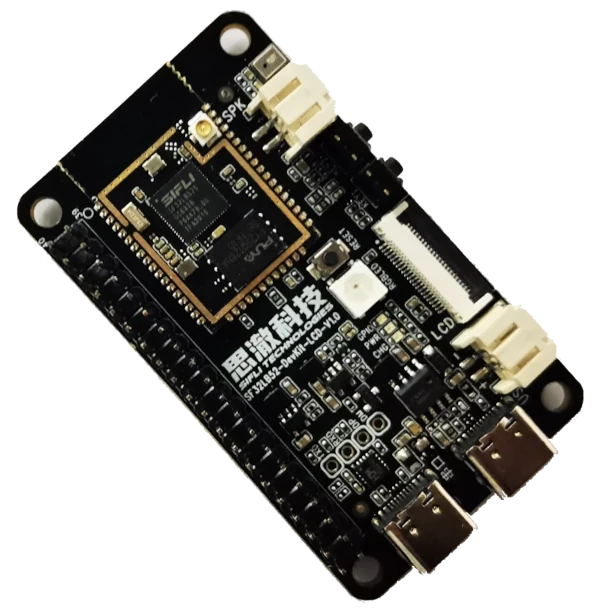

SF32LB52-DevKit-LCD is a development board based on the SF32LB52x series chip SoC. It is mainly used for developing various applications based on SPI/DSPI/QSPI or MCU/8080 interface display screens.

More information about the board can be found at the SF32LB52-DevKit-LCD website [1].

Hardware

SF32LB52-DevKit-LCD provides the following hardware components:

  • SF32LB52x-MOD-N16R8 module based on SF32LB525UC6

    • 8MB OPI-PSRAM @ 144MHz (from SF32LB525UC6)

    • 128Mb QSPI-NOR @ 72MHz, STR mode

    • 48MHz crystal

    • 32.768KHz crystal

    • Onboard antenna (default) or IPEX antenna, selectable via 0 ohm resistor

    • RF matching network and other R/L/C components

  • Dedicated screen interface

    • SPI/DSPI/QSPI, supports DDR mode QSPI, led out through 22-pin FPC and 40-pin header

    • 8-bit MCU/8080, led out through 22pin FPC and 40pin header.

    • Supports touch screens with I2C interface.

  • Audio

    • Analog MIC input.

    • Analog audio output, onboard Class-D audio PA.

  • USB

    • Type C interface, connected to USB to serial chip, enabling program download and software debug, can also supply power.

    • Type C interface, supports USB-2.0 FS, can also supply power.

  • SD card

    • Supports TF cards using SPI interface, onboard Micro SD card slot.

Supported Features

The sf32lb52_devkit_lcd board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

sf32lb52_devkit_lcd/sf32lb525uc6 target

Type

Location

Description

Compatible

CPU

on-chip

ARM Cortex-M33 CPU1

arm,cortex-m33

Clock control

on-chip

SiFli Reset and Clock Controller (RCC) is a multi-function peripheral in charge of reset control and clock control for all SoC peripherals1

sifli,sf32lb-rcc-clk

on-chip

SiFli DLL is a digital phase-locked loop peripheral, controlled by the RCC1

sifli,sf32lb-dll

on-chip

Generic fixed-rate clock provider3 1

fixed-clock

on-chip

SiFli SF32LB HXT48 clock1

sifli,sf32lb-hxt48

Interrupt controller

on-chip

ARMv8-M NVIC (Nested Vectored Interrupt Controller)1

arm,v8m-nvic

Memory controller

on-chip

SiFli SF32LB Memory Peripheral Interface (MPI)1 1

sifli,sf32lb-mpi

Multi-Function Device

on-chip

SiFli SF32LB RCC (Reset and Clock Control) if a multi-function peripheral in charge of reset and clock control for all SoC peripherals1

sifli,sf32lb-rcc

MMU / MPU

on-chip

ARMv8-M MPU (Memory Protection Unit)1

arm,armv8m-mpu

MTD

on-board

Fixed partitions of a flash (or other non-volatile storage) memory1

fixed-partitions

Pin control

on-chip

SF32LB52x Pin multiplexer and pin configuration controller (HPSYS_PINMUX)1

sifli,sf32lb52x-pinmux

Power management

on-chip

SiFli SF32LB AON1

sifli,sf32lb-aon

on-chip

SiFli SF32LB PMUC1

sifli,sf32lb-pmuc

Serial controller

on-chip

SiFli SF32LB USART1

sifli,sf32lb-usart

SRAM

on-chip

Generic on-chip SRAM1

mmio-sram

System controller

on-chip

SiFli System Configuration (HPSYS_CFG)1

sifli,sf32lb-cfg

Timer

on-chip

ARMv8-M System Tick1

arm,armv8m-systick

Programming and Debugging

The sf32lb52_devkit_lcd board supports the runners and associated west commands listed below.

flash debug
sftool ✅ (default)

Refer to sftool website [2] for more information.
