phyBOARD-Pollux i.MX8M Plus

Overview

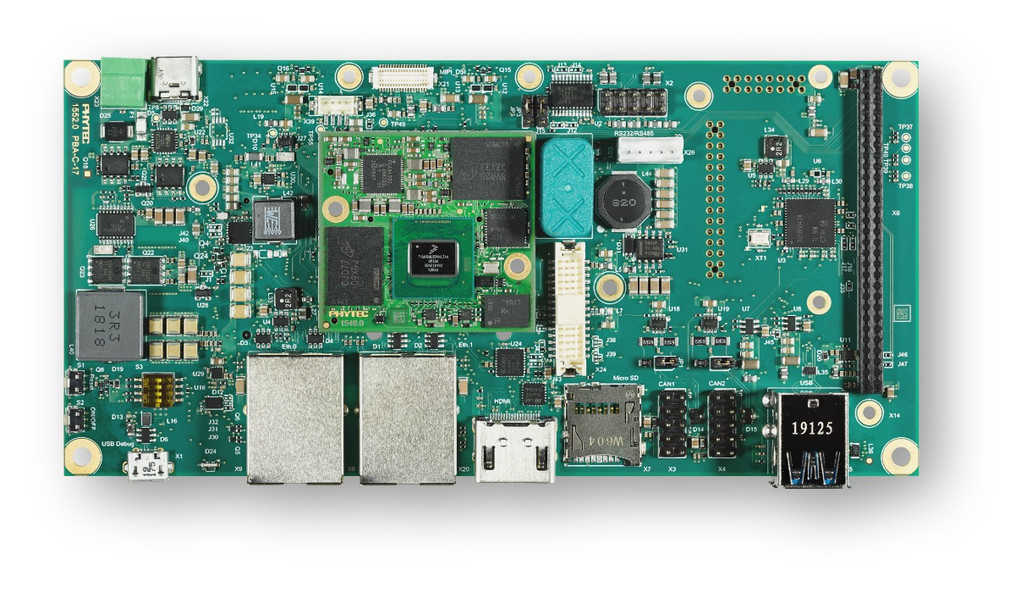

The phyBOARD-Pollux is based upon the phyCORE-i.MX8M Plus SOM which is based on the NXP i.MX8M Plus SoC. The SoC includes four Coretex-A53 cores and one Coretex-M7 core for real time applications like Zephyr. The phyBOARD-Pollux can be used for various applications like SmartHomes, Industry 4.0, IoT etc. It features a lots of interfaces and computing capacity. It can be used as a reference, to develop or in the final product too.

Board features:

  • Memory:

    • RAM: 256MB - 8GB LPDDR4

    • EEPROM: 4kB - 32kB

    • eMMC: 4GB - 64GB (eMMC 5.1)

    • SPI NOR Flash: 4MB - 256MB

  • Interfaces:

    • Ethernet: 2x 10/100/1000BASE-T (1x TSN Support)

    • USB: 2x 3.0 Host

    • Serial: 1x RS232 / RS485 Full Duplex / Half Duplex

    • CAN: 2x CAN FD

    • Digital I/O: via Expansion Connector

    • PCIe: 1x miniPCIe

    • MMX/SD/SDIO: microSD slot

    • Display: LVDS(1x4 or 1x8), MIPI DSI(1x4), HDMI

    • Audio: SAI

    • Camera: 2x MIPI CSI-2 (phyCAM-M)

    • Expansion Bus: I2C, SPI, SDIO, UART, USB

    • JTAG: via PEB-EVAL-01

  • LEDs:

    • 1x Multicolor Status LED via I2C

phyBOARD-Pollux

More information about the board can be found at the PHYTEC website.

Supported Features

The Zephyr phyboard_polis board configuration supports the following hardware features:

Interface

Controller

Driver/Component

NVIC

on-chip

nested vector interrupt controller

SYSTICK

on-chip

systick

CLOCK

on-chip

clock_control

PINMUX

on-chip

pinmux

UART

on-chip

serial port-polling; serial port-interrupt

GPIO

on-chip

GPIO output GPIO input

The default configuration can be found in the defconfig file: boards/phytec/phyboard_pollux/phyboard_pollux_mimx8ml8_m7_defconfig.

It’s recommended to disable peripherals used by the M7-Core on the host running on the Linux host. Other hardware features are not currently supported with Zephyr on the M7-Core.

Connections and IOs

The following Compontens are tested and working correctly.

UART

Board Name

SoM Name

Usage

Debug USB (A53)

UART1

UART Debug Console via USB

Wo WiFi Module

UART3

UART to WiFi/BLE Module

Debug USB (M7)

UART4

UART Debug Console via USB

Note

The WiFi/BLE Module connected to UART3 isn’t working with Zephyr yet. UART3 can also be used through pin 31(RX) and 33(TX) of connector X6.

GPIO

The pinmuxing for the GPIOs is the standard pinmuxing of the mimx8mp devicetree created by NXP and can be found at dts/arm/nxp/nxp_imx8ml_m7.dtsi. The Pinout of the phyBOARD-Polis can be found at the PHYTEC website.

Programming and Debugging

The i.MX8MP does not have a separate flash for the M7-Core. Because of this the A53-Core has to load the program for the M7-Core to the right memory address, set the PC and start the processor.

The M7 can use up to 3 different RAMs (currently, only two configurations are supported: ITCM and DDR). These are the memory mapping for A53 and M7:

Region

Cortex-A53

Cortex-M7 (System Bus)

Cortex-M7 (Code Bus)

Size

OCRAM

0x00900000-0x0098FFFF

0x20200000-0x2028FFFF

0x00900000-0x0098FFFF

576KB

DTCM

0x00800000-0x0081FFFF

0x20000000-0x2001FFFF

128KB

ITCM

0x007E0000-0x007FFFFF

0x00000000-0x0001FFFF

128KB

OCRAM_S

0x00180000-0x00188FFF

0x20180000-0x20188FFF

0x00180000-0x00188FFF

36KB

DDR

0x80000000-0x803FFFFF

0x80200000-0x803FFFFF

0x80000000-0x801FFFFF

2MB

For more information about memory mapping see the i.MX 8M Plus Applications Processor Reference Manual (section 2.1 to 2.3)

At compilation time you have to choose which memory region will be used. This configuration is done in the devicetree and the defconfig / the config of your program.

By default Zephyr will use the TCM memory region. You can configure it to use the DDR region. In the devicetree overwrite you can select both options.

chosen {
   /* TCM */
   zephyr,flash = &itcm;
   zephyr,sram = &dtcm;
};

chosen {
   /* DDR */
   zephyr,flash = &ddr_code;
   zephyr,sram = &ddr_sys;
};

And in the prj.conf the configuration to the DDR memory region:

CONFIG_CODE_DDR=y
CONFIG_CODE_ITCM=n

Connecting to the Serial Console

A serial console for both the application CPU and the Cortex M7 coprocessor are available via the onboard dual USB-to-UART converter. If you use Linux, create a udev rule (as root) to fix a permission issue when not using root for flashing.

# echo 'ATTR{idProduct}=="0a70", ATTR{idVendor}=="10c4", MODE="0666", GROUP="plugdev"' > /etc/udev/rules.d/50-usb-uart.rules

Reload the rules and replug the device.

$ sudo udevadm control --reload-rules

Finally, unplug and plug the board again for the rules to take effect.

Connect to the console via your favorite terminal program. For example:

$ minicom -D /dev/ttyUSB1 -b 115200

Flashing and Debugging via JTAG

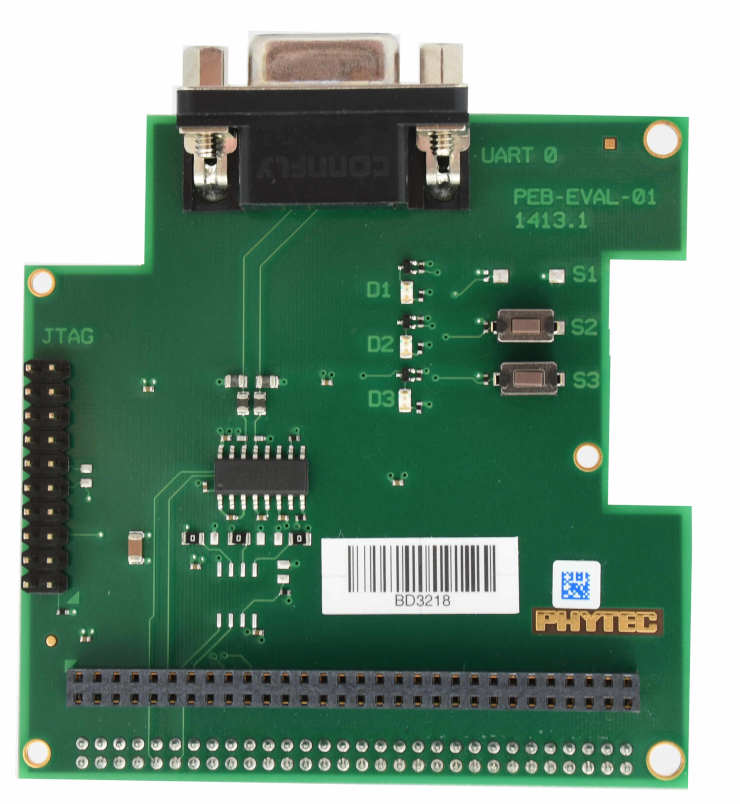

The phyBOARD-Pollux can be debugged using a JTAG or SWD debug adapter. A Segger JLink can be connected to the compatible JTAG connector on Phytec’s PEB-EVAL-01 shield.

PEB-EVAL-01

PEB-EVAL-01

Before flashing or debugging via a JTAG debug adapter, the M7 core has to be switched on:

u-boot=> bootaux 0x7e0000

Here is an example for the Hello World application:

# From the root of the zephyr repository
west build -b phyboard_pollux/mimx8ml8/m7 samples/hello_world
west flash

The console should now show the output of the application:

*** Booting Zephyr OS build v3.7.0 ***
Hello World! phyboard_pollux/mimx8ml8/m7

Starting a debug session is similar to flashing:

# From the root of the zephyr repository
west build -b phyboard_pollux/mimx8ml8/m7 samples/hello_world
west debug

Starting the M7-Core from U-Boot and Linux

Loading binaries and starting the M7-Core is supported from Linux via remoteproc or from U-boot by directly copying the firmware binary. Please check the phyCORE-i.MX 8M Plus BSP Manual for more information.
