BeagleConnect Freedom
Overview
BeagleBoard.org BeagleConnect Freedom is a wireless Internet of Things board based on the SimpleLink multi-Standard CC1352P7 wireless MCU.
Hardware
BeagleBoard.org BeagleConnect Freedom board features the TI CC1352P7 wireless microcontroller. The BeagleConnect Freedom is the first available BeagleConnect solution consisting of a board and a case which ships programmed and ready to be used.
BeagleConnect Freedom board runs the Zephyr RTOS and has mikroBUS ports along with BLE and Sub-GHz radios on it.
The CC1352P7 wireless MCU has a 48 MHz Arm Cortex-M4F SoC and a Bluetooth Low Energy and IEEE 802.15.4.
The board also features a TI MSP430F5503 microcontroller used as a USB-to-serial bridge and GPIO expander.
Supported Features
The board configuration supports the following hardware features:
Interface |
Controller |
Driver/Component |
|---|---|---|
GPIO |
on-chip |
gpio |
MPU |
on-chip |
arch/arm |
NVIC |
on-chip |
arch/arm |
PINMUX |
on-chip |
pinmux |
UART |
on-chip |
serial |
I2C |
on-chip |
i2c |
SPI |
on-chip |
spi |
HWINFO |
on-chip |
hwinfo |
I2C |
off-chip |
OPT3001 |
I2C |
off-chip |
HDC2010 |
I2C |
off-chip |
BCF_BRIDGE_MCU |
ADC |
on-chip |
adc |
PWM |
on-chip |
pwm |
FLASH |
on-chip |
flash |
RADIO |
on-chip |
ieee802154 |
Connections and IOs
BeagleConnect Freedom front connections

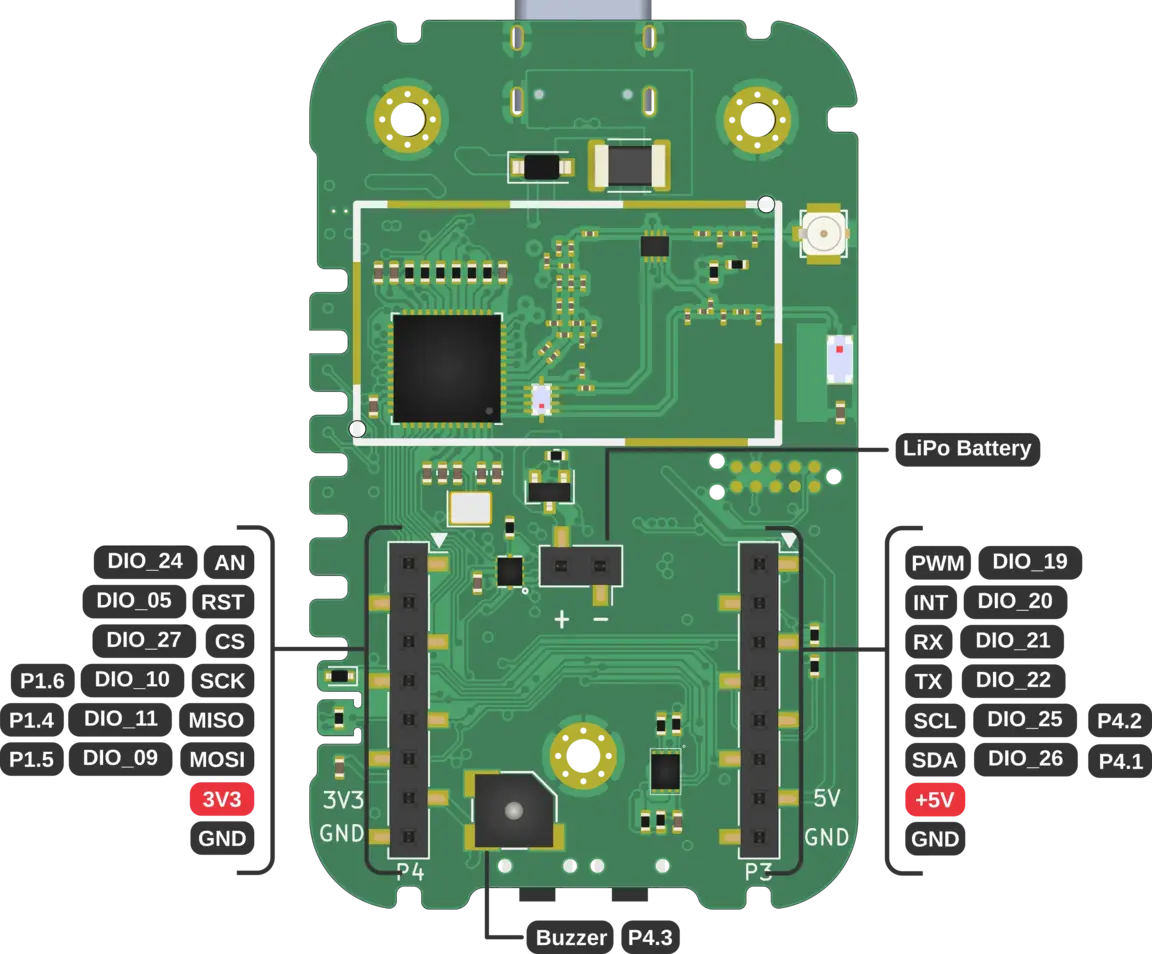

BeagleConnect Freedom back connections
Pin |
Function |
Usage |
|---|---|---|
DIO5 |
RST_MB2 |
Reset mikroBUS port 2 |
DIO6 |
RST_MB1 |
Reset mikroBUS port 1 |
DIO7 |
INT_SENSOR |
On-board sensor interrupts |
DIO8 |
FLASH_CS |
SPI flash chip-select |
DIO9 |
SDO / PICO |
SPI serial data output |
DIO10 |
SCK |
SPI serial clock |
DIO11 |
SDI / POCI |
SPI serial data input |
DIO12 |
CC1352_RX |
UART RXD mikroBUS port 1 or MSP430 |
DIO13 |
CC1352_TX |
UART TXD mikroBUS port 1 or MSP430 |
DIO14 |
I2C_CTRL |
Enable on-board sensor I2C bus |
DIO15 |
USER_BOOT |
BOOT button status |
DIO16 |
INT_MB1 |
INTERRUPT PIN on mikroBUS port 1 |
DIO17 |
PWM_MB1 |
PWM PIN on mikroBUS port 1 |
DIO18 |
LED_LINK |
Radio link indicator LED |
DIO19 |
PWM_MB2 |
PWM PIN on mikroBUS port 2 |
DIO20 |
INT_MB2 |
INTERRUPT PIN on mikroBUS port 2 |
DIO21 |
MB2_RX |
UART RXD on mikroBUS port 2 |
DIO22 |
MB2_TX |
UART TXD on mikroBUS port 2 |
DIO23 |
AN_MB1 |
ANALOG PIN on mikroBUS port 1 |
DIO24 |
AN_MB2 |
ANALOG PIN on mikroBUS port 2 |
DIO25 |
SCL |
I2C SCL |
DIO26 |
SDA |
I2C SDA |
DIO27 |
CS_MB2 |
SPI CS on microBUS port 2 |
DIO28 |
CS_MB1 |
SPI CS on microBUS port 1 |
DIO29 |
REF_SW_CTRL1 |
Antenna mux PA enable |
DIO30 |
REF_SW_CTRL2 |
Antenna mux SubG enable |
System requirements
Prerequisites
BeagleConnect Freedom requires CC1352 Flasher for
flashing Zephyr firmware using west flash.
pip3 install cc1352-flasher
References
- BeagleBoard.org BeagleConnect Freedom reference:
